Macchina per la formatura di molle CNC a 4 assi standard ad alta facilità d′uso Per la primavera

Macchina per la formatura di molle CNC a 4 assi standard ad alta facilità d'uso per la primavera. Siamo una fabbrica specializzata nella produzione di macchinari per la lavorazione della primavera.
Request a Quote

Dettagli prodotti

Informazioni di Base.

Model No.
HYD-40T-4A
Specifiche
1600*1300*1900mm
Marchio
HYD
Origine
Dongguan, China
Codice SA
84633000
Capacità di Produzione
30 Sets/ Month

Descrizione del Prodotto

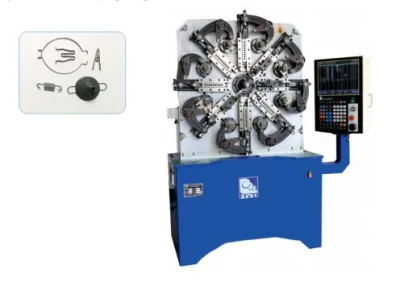

 4 Axis High Standard Easy Operation CNC Spring Forming Machine For Making Spring

Suitable for processing various precision compression springs, extension springs, single and double torsion springs, tower springs, flat wire springs, special-shaped springs and complex wire forming products, widely used in furniture, electrical appliances, beds/seat cushions, lighting, electric vehicles , automobiles, kitchen utensils, machinery and molds and other fields.

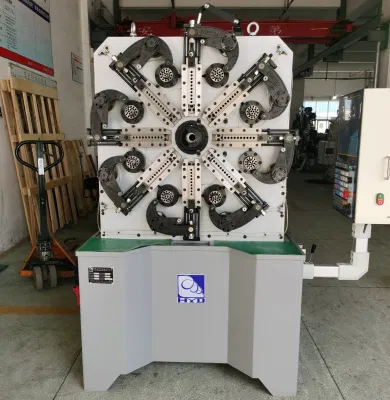

4 Axis High Standard Easy Operation CNC Spring Forming Machine for Making Spring



Model HYD-40T-4A
Axis Count 3 axis
Wire Size Range 1.0-4.0mm
Max Feeding speed 110m/min
Control system+decoiler 1 set
Cam Revolution Speed 0~60RPM
Wire Feed Motor 5.5KW
Cam Motor 5.5KW
Quill Motor 1.0KW
Voltage 380V 50HZ
Machine Dimension 1600*1300*1900mm
Machine Weight 1800KG





Machine Features:


1. Versatile spring former applicable for wire forming, torsion and extension springs.

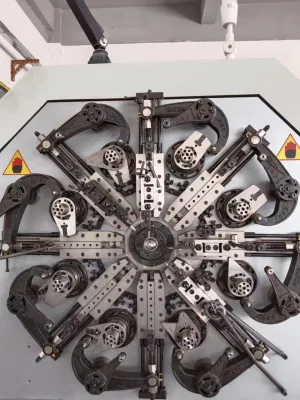

2. 8 forming slides controlled by cam axis
3. Wire Rotation 360 degree
4. Quick release mechanism for wire change over
5. Varieties of configurations such as lateral slide, servo cutter, dual spinner, rotary gripper, hook station and etc.

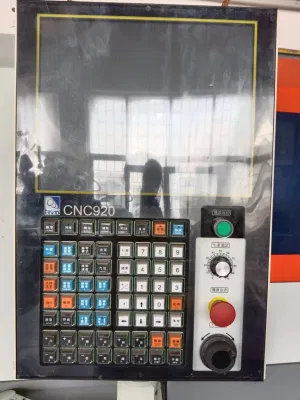

6. The computer has a English interface, easy to operate, and accurate positioning. The computer can control three to eight servo motors, and all motors can be operated synchronously or independently.
7.The automatic stop design and the automatic acceleration function of the wire frame when there is no wire, broken wire, or tangled wire make the production easier and more effective

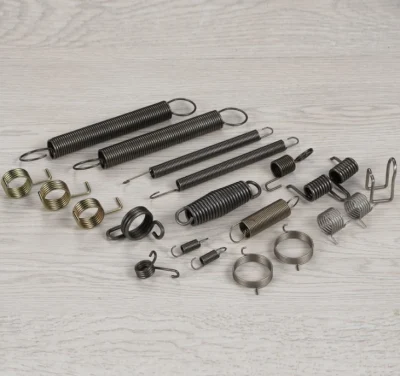

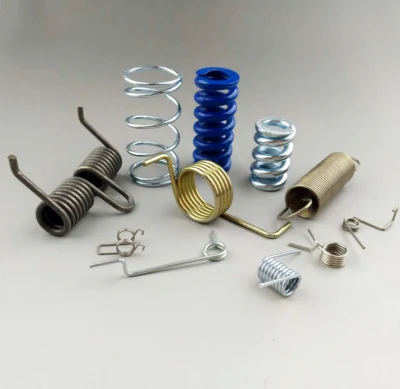

Spring Sample and Wire Decoiler Picture



4 Axis High Standard Easy Operation CNC Spring Forming Machine for Making Spring4 Axis High Standard Easy Operation CNC Spring Forming Machine for Making Spring

Company Profile
4 Axis High Standard Easy Operation CNC Spring Forming Machine for Making Spring

Packaging & Shipping
4 Axis High Standard Easy Operation CNC Spring Forming Machine for Making Spring





FAQ
1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc
2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
3. Q: What is the payment term

A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment. We also accept other payment terms.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receiving deposit. But it depends on machine model. Some of them could be shipped within 10 days.
5. Q: What is the guarantee period of the machine?
A:  1 year
6. Q: How can I get training if have no experience about wire forming machine?
A: We will give 5 days training in our factory, we warmly welcome you to our factory to check and learn machine training before shipment. We will send manual book with machine and also can send video to show you how to run machine if you have doubts.
7.
Q: What certification do you have?
 A:All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality.
